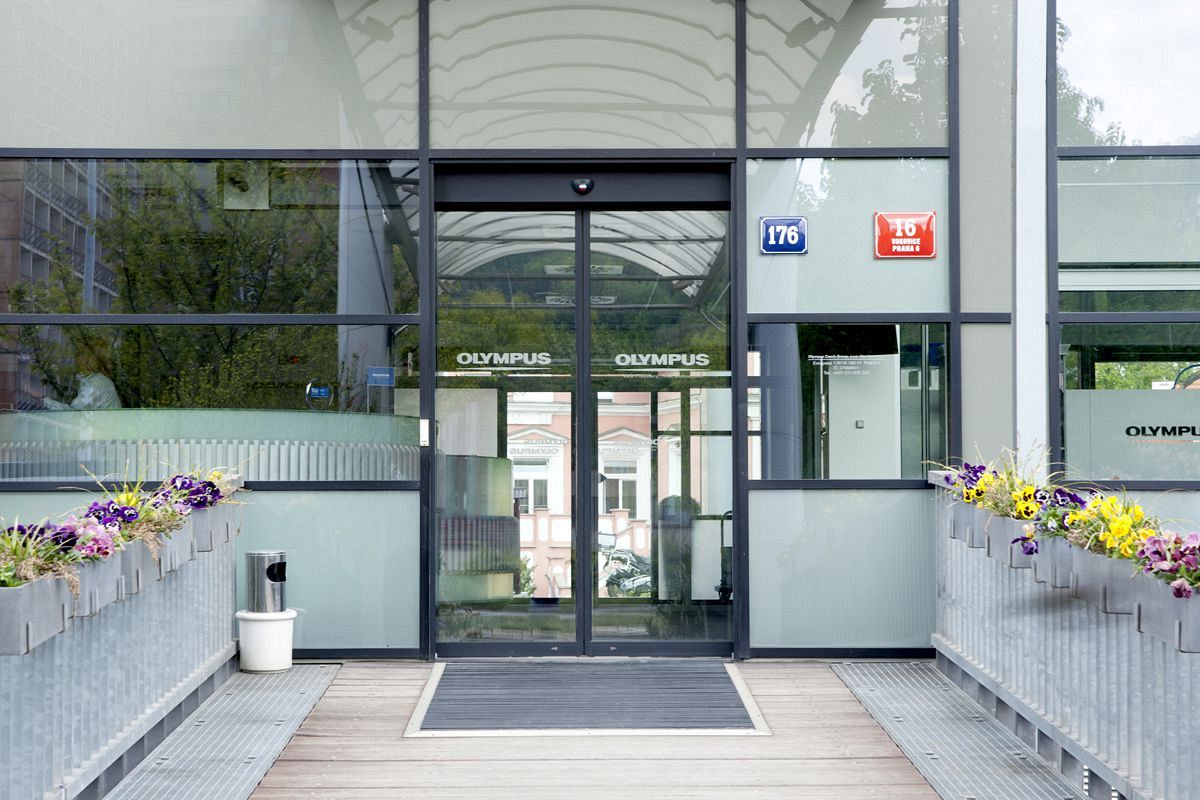

Linear automatic sliding doors
Linear automatic sliding door is probably the most used type of automatic doors. They are based on linear sliding leaf, meeting in the middle. Linear automatic sliding doors are applicable wherever there is enough of side space.
Automatic doors with TORMAX drives
 |
||||||
| drive dimensions (WxH) | 100×142 | 100×142 | 100×142 | 150×165 | 200×155 | 200x185 |
| max. weight of 1-leaf door (mm) | 1×100 | 1×120 | 1×130 | 1×200 | 1×150 | 1×450 |
| max. weight of 2-leaf door (mm) | 2×100 | 2×100 | 2×120 | 2×180 | 2×130 | 2×300 |
| max. opening width of 1-leaf door (mm) | 800 – 2000 | 800 – 2200 | 800 – 2200 | 700 – 3000 | 700 – 2000 | 800 – 2800 |
| max. opening width of 2-leaf door (mm) | 800 – 2900 | 800 – 2900 | 800 – 2900 | 700 – 3000 | 700 – 3000 | 900 – 3000 |
| Opening/closing speed (m/s) | 0.8/0.8 | 0.8/0.8 | 0.8/0.8 | 0.8/0.8 | 0.5/0.5 | 1/0.8 |
Automatic doors with GEZE drives
Automatic doors with GEZE drives: (download brochure here)
 |
SLIMDRIVE SL NT | ECDRIVE | POWERDRIVE PL |
| Drive dimensions (W×H) | 70×190 | 120×175 150×175 |
150×185 200×185 |
| Max. weight of single leaf door (mm) | 1×125 | 1×120 | 1×200 |
| Max. weight of double leaf door (mm) | 2×125 | 2×120 | 2×180 |
| Max. opening width of single leaf door (mm) | 700 – 3000 | 700 – 3000 | 700 – 3000 |
| Max. opening width of double leaf door (mm) | 900 – 3000 | 900 – 3000 | 800 – 3000 |
| Opening/closing speed (m/s) | 0.7/0.7 | 0.7/0.7 | 0.7/0.7 |
GEZE profile system:
- LR 12
- An elegant and subtle profile for glazing simple safety glass, particularly for interior automatic sliding doors. The profile's visible width is 22 mm, the lower base profile is 80 mm, the profile depth is 20 mm, the glass thickness is 6-12 mm, and the glazing system is adhesive bonding.
- LR 22B
- An extremely compact series of profiles for double glazing with a width of up to 23 mm for dry glazing (into the gasket) and 28 mm for wet glazing. The visible width of the profile is 30 mm, the bottom profile is 78 mm, the depth of the profile is 34 mm. For dry glazing, the glass thickness is 8.5-10 mm, 21.5-23 mm, and for wet glazing, it is 6-28 mm.
- Full-glass frameless design
- TORMAX has developed a special and absolutely safe system for full-glass frameless sliding doors. Another contribution by TORMAX to architecture that is perfection down to the last detail.
- LR 32THERM
- Thermally insulated profile with a very subtle and compact construction. Aluminum profile with a thermal break and perimeter sealing that increase energy efficiency, reduce building operating costs, and thus protect the environment. Profile view width of 35 mm with the possibility of 70 mm, bottom rail profile of 85 mm, profile depth of 40 mm, glass thickness of 32 mm - double or triple glass. Download brochure.
